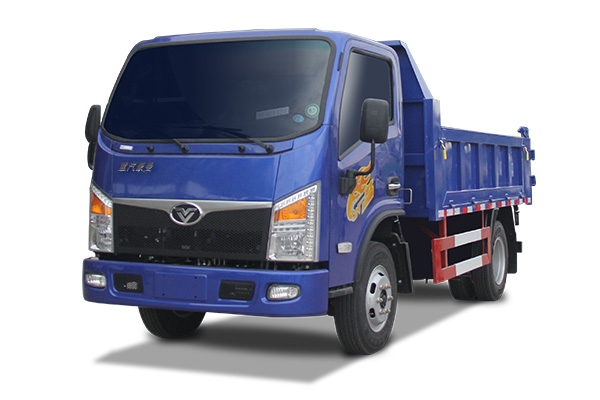

Sinotruk Haoman 12T Pure Electric Dump Truck
The Haoman 12T pure electric dump truck is equipped with a CATL 98.04kWh battery, Isprin electric control system, and Fast powertrain, offering strong power and green energy efficiency.
This vehicle model has a compact structure, suitable for urban traffic. It has a low overall height, allowing it to enter basements, and is suitable for cities of all sizes. It complies with regulatory requirements and is suitable for transporting various materials such as sand, gravel, cement, building materials, and waste in niche markets.
Technical Parameters
| Motor | Model | Minggao TZ342XSHX16501 |
| Rated/Peak Power | 105/165 | |
| Rated/Peak Torque | 500/1000 |
| Transmission | / |
| Rear Axle Model | 7.2T |
| Rear Axle Ratio | 4.875 |
| Battery (kWh) | 98.04 |
| Frame Section (mm) | 196 |
| Suspension (Front Spring Rear Spring) | 11/9+7 |
| Tires | 245/70R19.5-16PR |
Vehicle Configuration
| Overall Vehicle Parameters | |
| Motor Model | TZ342XSHX16501 |
| Dimensions (mm) | 5620x2160x2200 |
| Wheelbase (mm) | 3100 |
| Front Overhang Rear Overhang (mm) | 1110/1410 |
| Maximum Designated Total Mass (Kg) | 11995 |
| Rated Passenger Capacity (people) | 2 |
